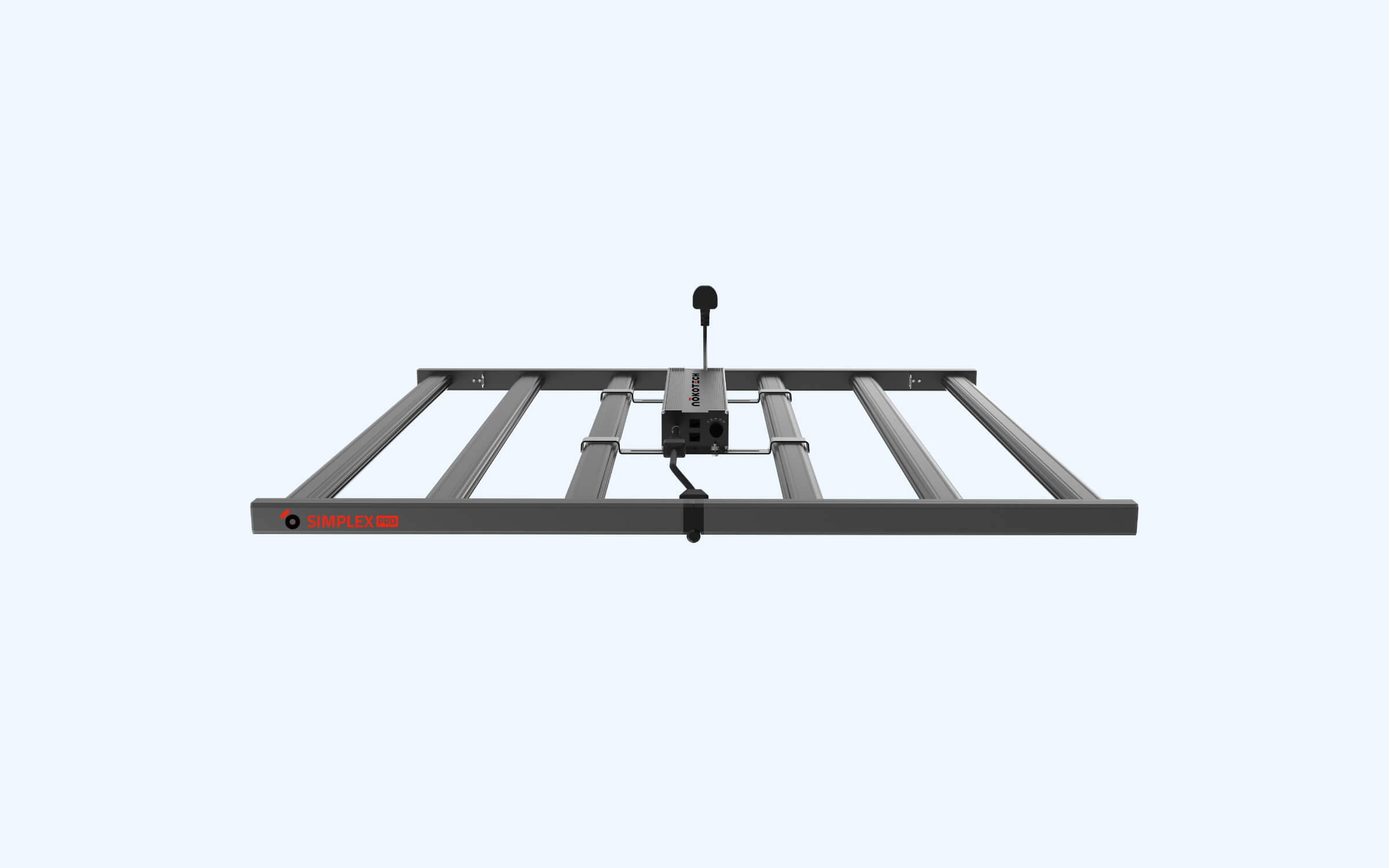

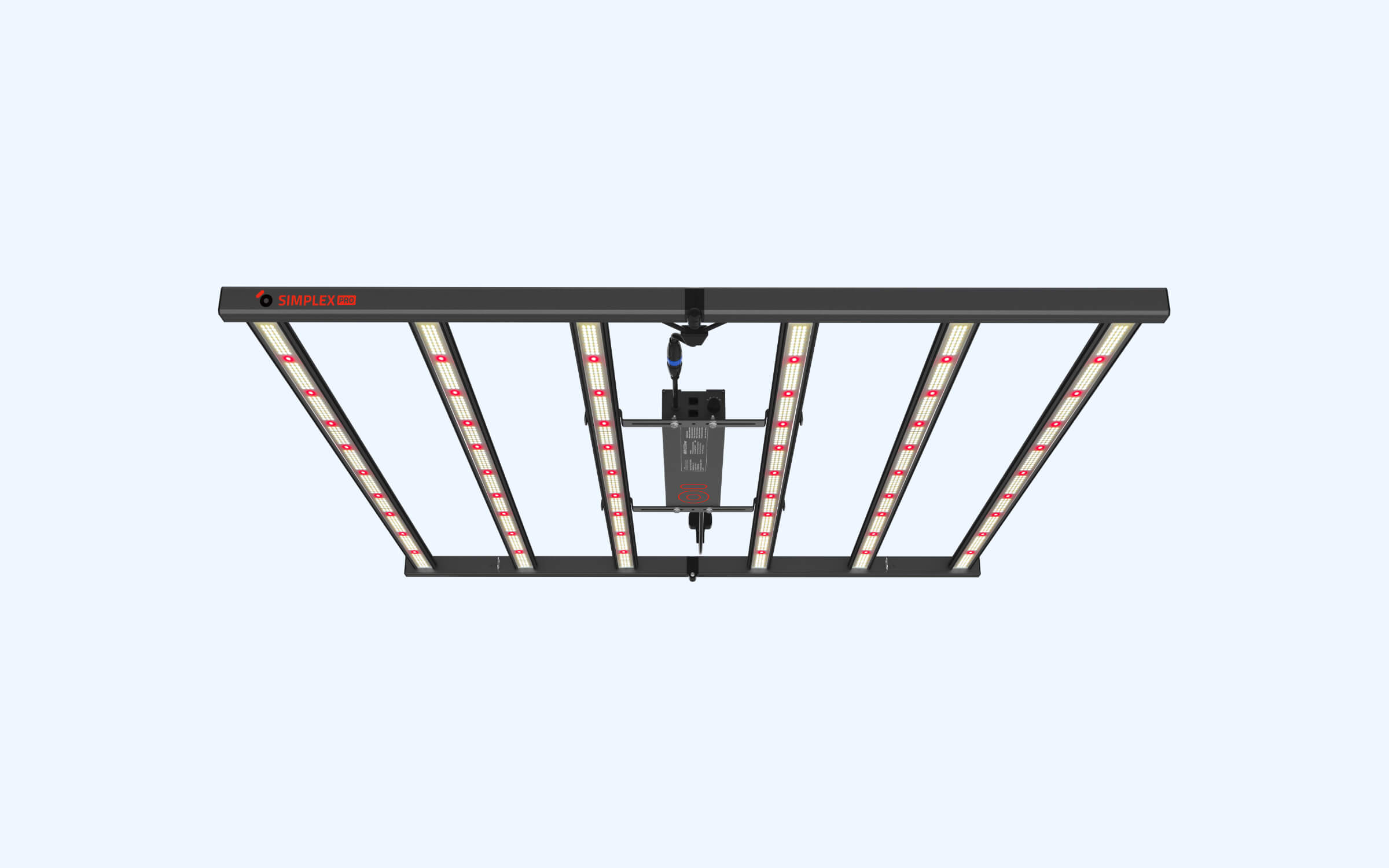

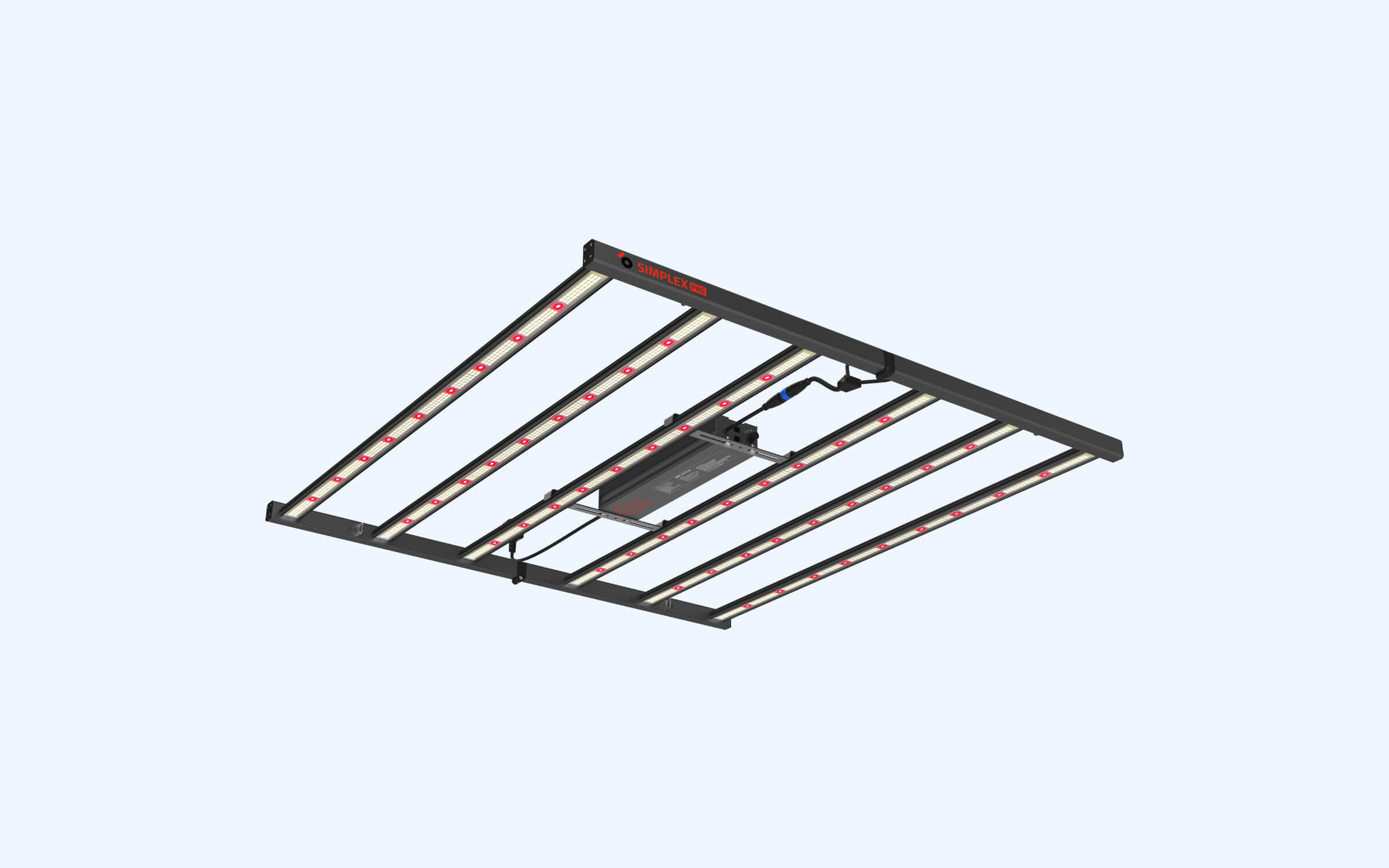

Simplex PRO

Product information

680W cost-effective LED grow light

Reviews

5.00 out of 5 stars

£325.00

The Simplex PRO is a next-generation, 6-bar, high-performance, high-efficiency LED grow light. It features premium Osram and San'an LEDs and can be powered and controlled by either NŌKOTECH’s 680W LED driver or any third-party 600-680W digital HPS ballast using the HPS Power Converter from NŌKOTECH.

Features

  • Foldable design & easy installation
  • Super lightweight - only 7.05 kg / 15.5 lbs
  • Works with LED driver and digital HPS ballast
  • Full-spectrum light output
  • Max PPF 1896 μmol/s
  • High efficacy - 2.8 μmol/j
  • Supports daisy chain using RJ cables
  • Remote control using 0-10 controllers

LED Fixture package includes

LED FIXTURE
1 unit
ROPE RATCHETS
4 pieces
BRACKETS (for driver/ballast mount)
2 pieces
SCREWS
4 pieces

LED driver package includes

680W LED DRIVER
1 unit
AC POWER CORD
1 piece (1.7 m / 6 ft)
RJ CABLE
1 piece

Technical specifications

MAX POWER
680W
INPUT VOLTAGE
200 - 240V
INPUT CURRENT
3.66A @ 200Vac / 3.05A @ 240Vac
DIMMING
Knob or 0-10V controller
POWER FACTOR
> 0.9
MAX AMBIENT TEMPERATURE
35°C / 95°F
SPECTRUM
Full spectrum
MAX PPF
1896 μmol/s
EFFICACY
2.8 μmol/j
LEDs COUNT
1920 (White) and 72 (Red)
LEDs
San'an and Osram

General specifications

DIMENSIONS (L.W.H)
1120 x 1076 x 35 mm / 44 x 42.3 x 1.38 in
NET WEIGHT (WITHOUT THE DRIVER)
4.55 kg / 10 lbs
NET WEIGHT (LED DRIVER)
2.5 kg / 5.5 lbs
WARRANTY
3 years
Download specs sheet Manual

Horticulture LED lights are now the top choice for growers due to their efficiency, power, low heat, and longevity. NŌKOTECH provides a wide range of LED lights for both home and industrial growers.

Simplex PRO 680W banner

Simplex PRO is a next-generation, 6-bar, high-performing, high-efficiency LED grow light. It features high-quality Osram and San’an LEDs and can be powered and controlled by either NŌKOTECH’s 680W LED driver or any third-party 600-680W digital HPS ballast (using HPS Power Converter from NŌKOTECH), which can be mounted on the fixture or positioned remotely.

This lightweight fixture, weighing only 7.05 kg with the 680W LED driver from NŌKOTECH, offers balanced full-spectrum output with high levels of PPE (2.8 µmol/J) and PPF (1896 µmol/s), making it a popular choice among growers. When using our LED driver, the light can be daisy-chained and controlled by any 0-10V controller.

LED DRIVER & HPS BALLAST

This unique LED grow light stands out in the market for its compatibility with both LED drivers and digital HPS ballasts. The 680W LED driver from NŌKOTECH is the go-to option for unparalleled performance and longevity. However, we also offer the flexibility to connect any third-party digital HPS ballast with a power range of 600-680W. This allows growers with existing ballasts to save by purchasing the fixture without the LED driver. In this case, the fixture comes with an HPS Power Converter from NŌKOTECH.

Simplex Pro LED driver and HPS ballast connectivity

Notice: To achieve optimal performance, the digital HPS ballast should be 600W with the boost option to 680W.

To buy the fixture without the LED driver, please contact us.

CONNECTIVITY AND CONTROL

When using the fixture with the high-end LED driver from NŌKOTECH, grower has multiple control options. It can be managed directly via the dimming knob, which offers four levels of brightness: 25%, 50%, 75%, and 100%.

For broader and more precise control, the fixture can be daisy-chained. By connecting up to 50 fixtures in one chain using RJ cables and any 0-10V controller (such as TrolMaster with the LMA-14 adapter), grower can achieve synchronised and precise control over your entire setup.

Simplex Pro daisy chain to controller

NŌKOTECH offers a touchscreen SMART controller that is fully compatible with all our LED grow lights, including the Simplex models.

SPECTRUM AND PPFD

Using 680W high-end LED driver from NŌKOTECH, fixture will provide more than 1000 average PPFD of PAR light intensity across your plants at 30cm (12in) height from the canopy over the area of 120×120 cm.

Simplex PRO PPFD map

Simplex PRO fixture uses high-quality, very efficient San’an (white) and Osram (red) LEDs to create a balanced full-spectrum light best suited for photosynthesis in all growth stages.

Simplex Pro spectrum

Simplex PRO horticulture LED fixture is designed for indoor use only, suitable for climate-controlled indoor farms and grow rooms. It features a perfect mix of full-spectrum specially designed for any scale of horticulture cultivation, from vegetative growth to blooming stages.
