Undercover 150
Product information
Comes with 2 fixtures in a box (Total 300W)
£354.00
Find where to buy
Out of stock
Features
- Easy installation: plug & play
- Full-spectrum with Far-red
- Max PPF 836 μmol/s
- High efficacy - 2.8 μmol/j
- Supports daisy-chain
- Remote control using 0-10 controllers
LED Fixture package includes
LED FIXTURE
2 units
|
2 units |
300W LED DRIVER
1 unit
|
1 unit |
AC PLUG CORD
1 piece
|
1 piece |
ROPE RATCHETS
4 pieces
|
4 pieces |
DIMMING CABLE (DRIVER TO CONTROLLER)
1 piece
|
1 piece |
DIMMING CABLE (DRIVER TO DRIVER)
1 piece
|
1 piece |
METAL BRACKETS
4 pieces
|
4 pieces |
SCREWS/NUTS
4 pieces
|
4 pieces |
Technical specifications (A pair of light)
MAX POWER
300W
|
300W |
INPUT VOLTAGE
200 - 240V
|
200 - 240V |
INPUT CURRENT
1.55A @ 200Vac / 1.35A @ 240Vac
|
1.55A @ 200Vac / 1.35A @ 240Vac |
DIMMING
0-10V controller
|
0-10V controller |
POWER FACTOR
> 0.9
|
> 0.9 |
MAX AMBIENT TEMPERATURE
35°C / 95°F
|
35°C / 95°F |
SPECTRUM
Full spectrum with 730nm Far-red
|
Full spectrum with 730nm Far-red |
MAX PPF
836 μmol/s
|
836 μmol/s |
EFFICACY
2.8 μmol/j
|
2.8 μmol/j |
LEDs
San'an and Osram
|
San'an and Osram |
BEAM ANGLE
120°
|
120° |
LEDs COUNT
1344 (White); 40 (Red) and 8 (Far-red)
|
1344 (White); 40 (Red) and 8 (Far-red) |
COVERAGE AREA
120 x 120 cm
|
120 x 120 cm |
General specifications
DIMENSIONS (L.W.H)
990 x 117.5 x 68.7 mm / 39 x 4.6 x 2.7 in
|
990 x 117.5 x 68.7 mm / 39 x 4.6 x 2.7 in |
NET WEIGHT (2 LIGHTS AND DRIVER)
5.7 kg / 12.6 lbs
|
5.7 kg / 12.6 lbs |
WARRANTY
3 years
|
3 years |
Horticulture LED lights have become the top choice for modern growers due to their efficiency, high output, minimal heat production, and durability. These advanced lighting solutions are transforming the way amateur and professional cultivators grow plants. NŌKOTECH leads this innovation, offering a wide range of LED lights for home gardeners and large-scale operations.
We have added under canopy lights to our product lineup, which are becoming popular as valuable additions to grow room setups. These lights provide supplementary lighting from below the plant canopy, ensuring that lower leaves and shaded areas receive adequate light. This enhancement improves photosynthesis and overall plant health, potentially yielding the best results for growers.
The Undercover 150 lights come in pairs, each with 150W power, and connect to a single 300W high-quality LED driver. Equipped with top-spec San’an and Osram LEDs, they deliver high levels of Photosynthetic Photon Flux (PPF) 836 µmol/s and Photosynthetic Photon Efficacy (PPE) 2.8 µmol/J.

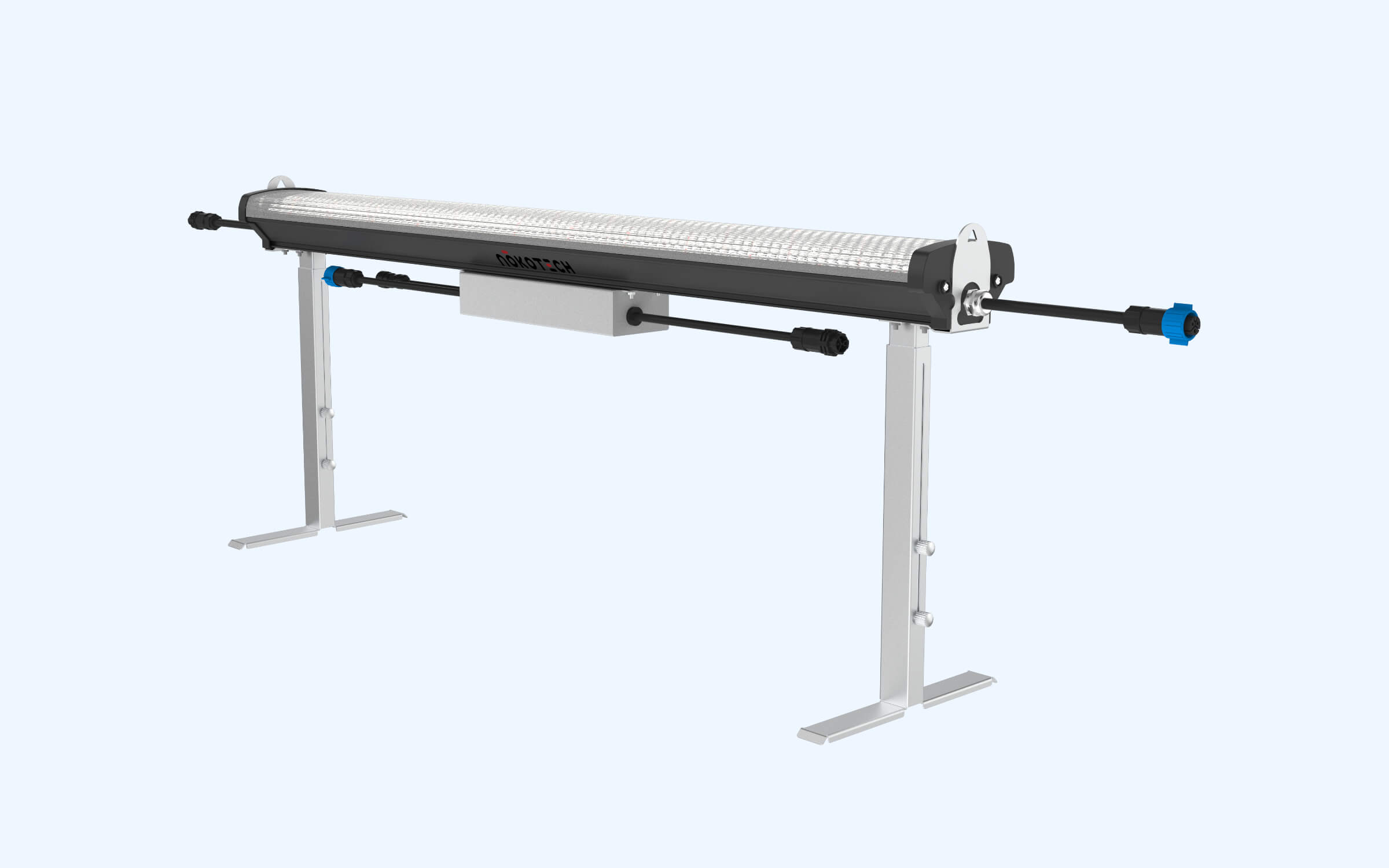

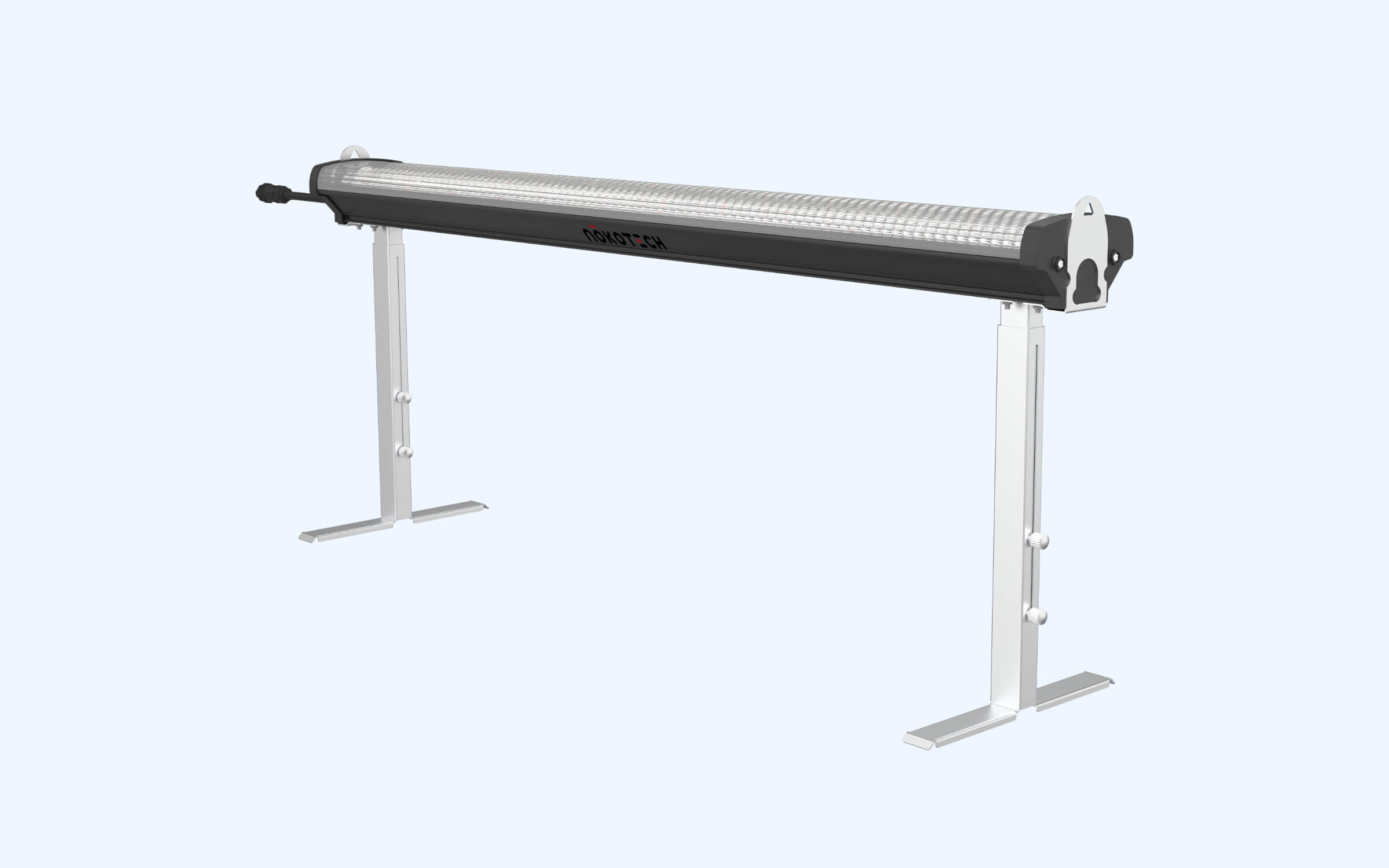

These lights can be placed on any dry surface or hung using specially designed mounts on the sides of the fixture. They should be positioned under the plants but no lower than the pots to ensure optimal light distribution.
CONNECTIVITY AND CONTROL

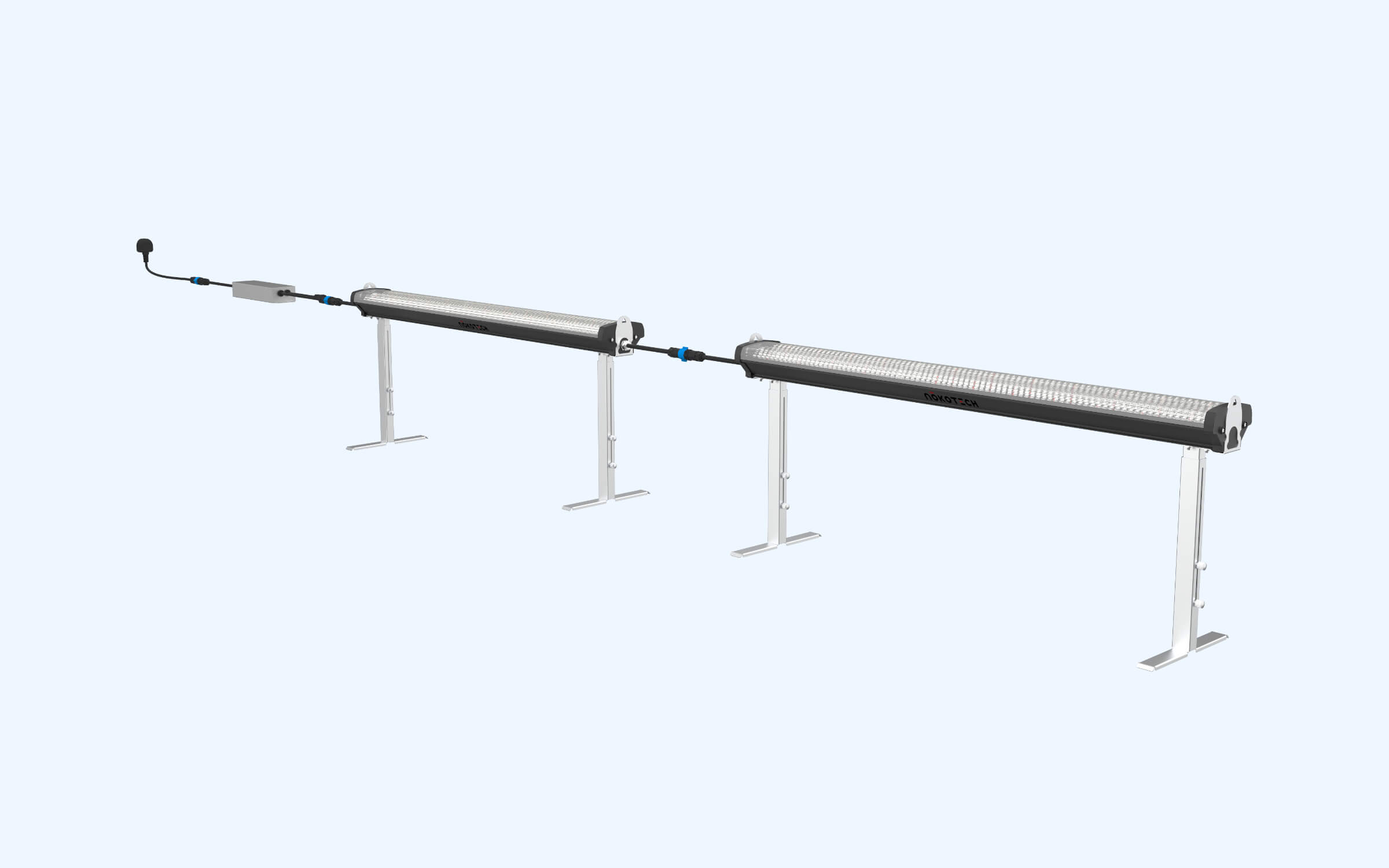

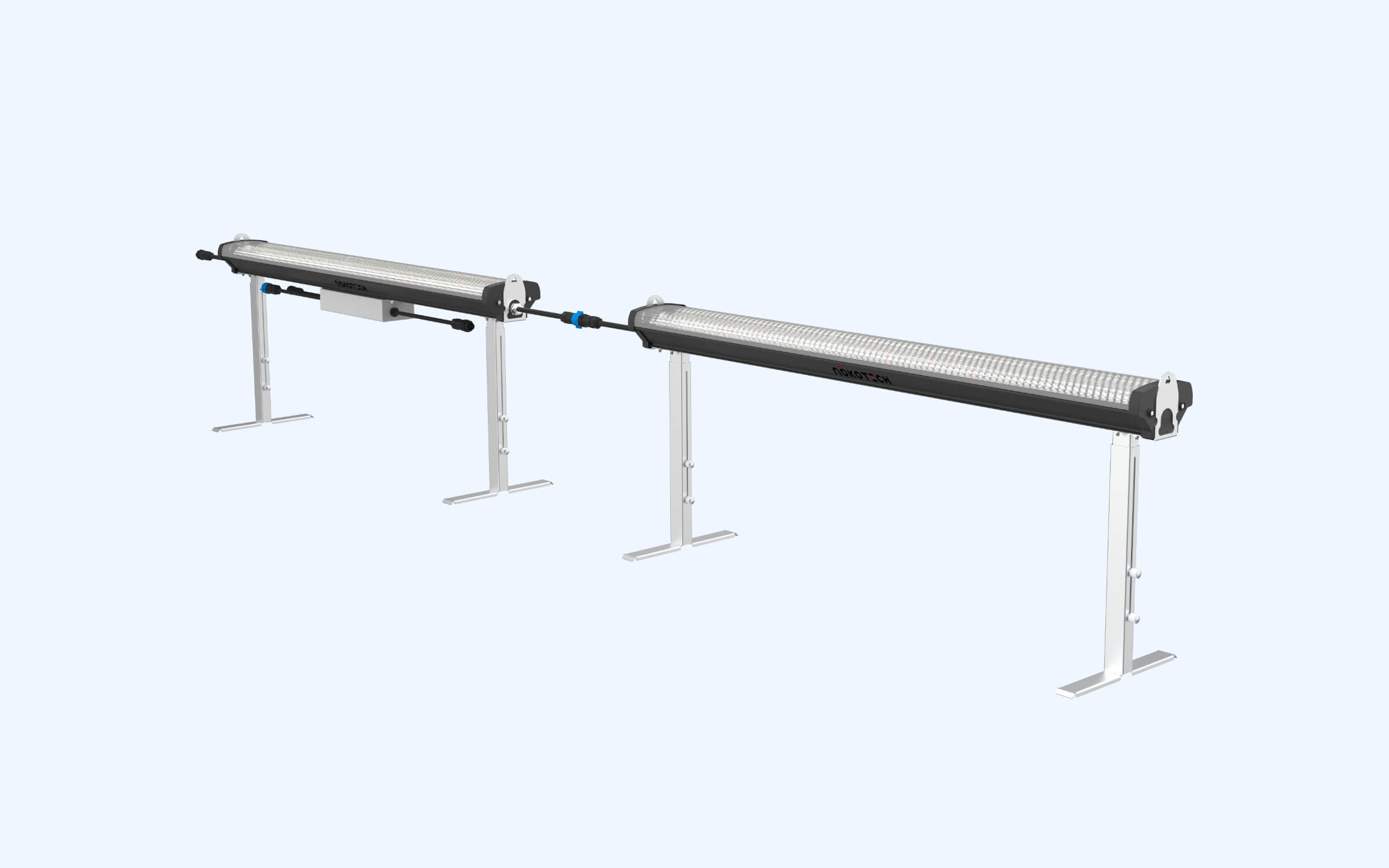

Undercover 150 lights can be daisy-chained, allowing up to 100 pairs on one line and connecting to any 0-10V controller (such as TrolMaster with the LMA-14 adapter). This feature allows growers to control all lights simultaneously, offering valuable options such as dimming, sunrise/sunset simulations, and other advanced settings. This level of control enhances the growing environment and helps achieve the best possible outcomes.
NŌKOTECH offers a touchscreen SMART controller that is fully compatible with all our LED grow lights, including the Undercover 150 fixtures.
NOTICE: There is a possibility to connect 4 pairs of Undercover 150 lights to one power source. Such an AC power cord is sold separately.
SPECTRUM
This under canopy light fixture offers a full-spectrum light output, including an additional 730nm Far-red wavelength. Far-red light is particularly beneficial during the flowering stage, promoting flowering and increasing yields. By enhancing the light spectrum available to plants, these under canopy lights are the go-to choice for growers aiming for top results.
The Undercover 150 horticulture LED fixture is designed exclusively for indoor use, making it ideal for climate-controlled indoor farms and grow rooms. The light has an IP65 rating, indicating strong protection against dust, high ambient humidity, and low-pressure water jets from any direction. However, it is crucial to keep both the light and its driver away from areas prone to flooding or significant water leaks to ensure optimal performance and safety.
Undercover 150
£354.00
The Undercover 150 is a high-performance, under canopy LED grow light for indoor cultivation. Each box includes two 150W lights, connecting to a 300W LED driver. With San’an and Osram LED chips, it delivers full-spectrum light with 730nm far-red, ensuring optimal light distribution and superior results.
Find where to buy
Out of stock
